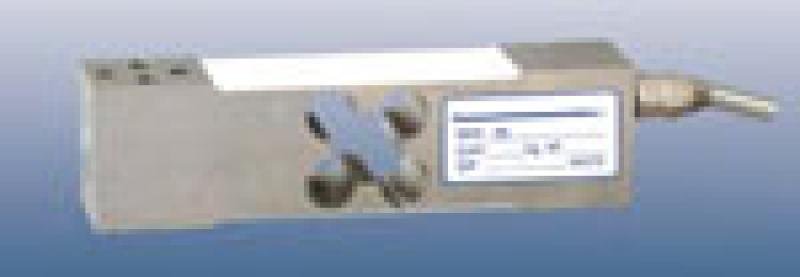

load-cell sentronik 7253 single point (30kg to 500kg)

SKU: SEN-7253

Load Cell Single Point
Contact us
load cells sentronik load cells sentronik single point

Description

Load Cell Single Point

PA6253 Load cell
PARAMETER
Rated output 2.0mV/V±0.1%
AccuracyClass 0.03
Non-linearity 0.03% F.S
Hysteretic 0.03% F.S
Non-repeatability 0.02% F.S
Creep in 30 minutes 0.03% F.S
Temperature effect span 15 PPM / of Applied Load
Temperature effect zero 26 PPM / of Applied Load
Compensated temperature range —10^40
Operating temperature range —40^65
Zero balance ±1% F.S
Input resistance 400±20©
Output resistance 350±3©
Safe overload 150% F.S
Ultimate overload 300% F.S
Excitation voltage 10VAC/DC
Maximum excitation voltage 15VAC/DC
Insulation resistance e5000M©(50V DC)
Environmental protection IP67
Material Stainless steel

Data Sheet.pdf

Variants

SKU Description Action
SE-7253 30 kg Contact us
SE-72531 60 kg Contact us
SE-72532 100 kg Contact us
SE-72533 200 kg Contact us
SE-72534 300 kg Contact us
SE-72535 500 kg Contact us
