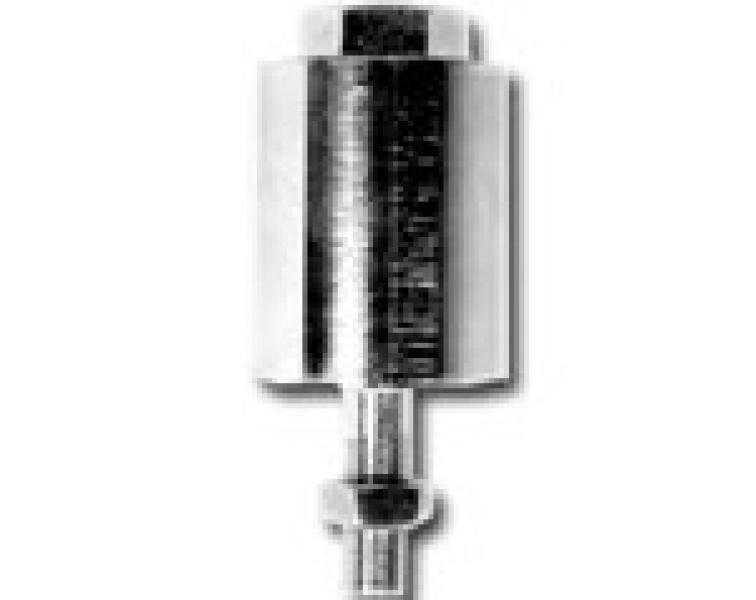

sentronik compact alignment assembly (tension alignment assembly)
SKU: SEN-CAA
Compact alignment assembly with Teflon insulator for electrical isolation.
Contact us
load cell accesories
Description
Compact alignment assembly with Teflon insulator for electrical isolation.
Each alignment assembly includes an internally coarse threaded housing w/wrench flats which contains a teflon insulator that mates with a spherical headed stud w/fine thread.
The 3/4" and 1" units have a delrin insulator. Includes (1)fine jam nut and (1)coarse jam nut. Side of housing has 1/4-20 tapped hole for attaching ground strap.
Grounding screw not included. Zinc and clear chromate plated.
Features:
* Stainless steel construction
* Capacities up to 15,000 lbs.
* Teflon insulator provides resistance-free operation.
* Capacities up to 15,000 lbs.
* Teflon insulator provides resistance-free operation.
| 4" Length
|
|||
TAA-1/4-28 to 1/4-20 |
TAA-3/8-24 to 3/8-16 |
TAA-1/2-20 to 1/2-13 |
TAA-1/2-20 to 5/8-11 |
| 300lb |
300lb |
3,000lb |
3,000lb  |
| 5.38" Length |
|||
|
TAA-3/4-16 to 3/4-10 |
TAA-3/4-16 to 1-8 |
||
| 10,000lb |
10,000lb |
||
| 5.25" Length |
|||
| TAA-1-14 to 1-8 |
TAA-1-14 to 1 1/4-7 |
||
| 15,000lb |
15,000lb |
||
Variants
| SKU | Description | Action |
|---|---|---|
| SE-TENSION-ALIGNMENT-ASSEMBLY | 300lb 4'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY1 | 300lb 4'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY2 | 3,000lb 4'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY3 | 3,000lb 4'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY4 | 10,000lb 5.38'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY5 | 10,000lb 5.38'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY6 | 15,000lb 5.25'' Length | Contact us |
| SE-TENSION-ALIGNMENT-ASSEMBLY7 | 15,000lb 5.25'' Length | Contact us |
