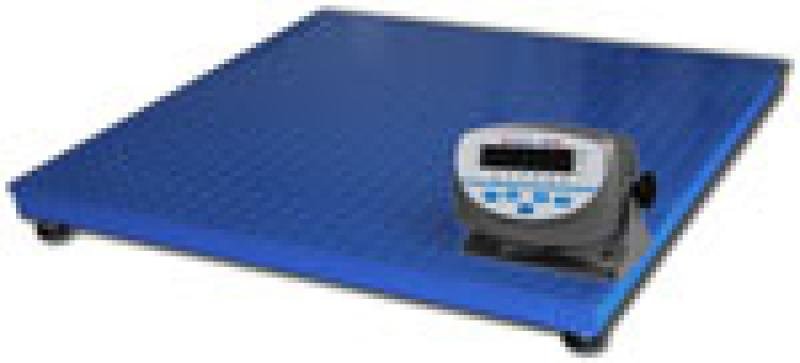

sentronik fs-1500 floor scales (2500kg, 5000kg)
SKU: SEN-FS1500
FS 1500 with SEN 1500 weighing indicator adopts high anti-jamming Single-chip microprocessor and high precision £- †A/D conversion technology, wildly applied in platform scale, platform balance and other weighing applications.
Contact us
floor scales
bench scales
sentronik floor scales
scales
sentronik bench scales
Description
FS 1500 with SEN 1500 weighing indicator adopts high anti-jamming Single-chip microprocessor and high precision £- †A/D conversion technology, wildly applied in platform scale, platform balance and other weighing applications.
Features: kg/lb one key switch, total, upper and lower limit, animal scale, RS232 communication
Technical Parameters
• Accuracy Class: III, n=3000
• A/D Conversion Mode: Adopts £--†Technology, 10 Times per Second
• Input Sensitivity e1.5uV/e
• Excitation: DC 5V
• Input Signal: -16mV ~18mV
• Load Cell Connection Mode: 6 Wire Connection (Long Wire Auto Compensation )
• Division: 1/2/5/10/20/50 Optional
• Power Supply: AC 85 ~ 245V, 50Hz ~ 60Hz; Build-in Battery DC 6V/4AH
• Working Temperature: 0~40°C; Working Humidity d90%RH
• Working Temperature: -10oC ~ 40oC; Humidity 10% ~ 85%, No Condensation
• Storing Temperature: -30oC ~ 60oC, Humility 10% ~ 70%, No Condensation
Features: kg/lb one key switch, total, upper and lower limit, animal scale, RS232 communication
Technical Parameters
• Accuracy Class: III, n=3000
• A/D Conversion Mode: Adopts £--†Technology, 10 Times per Second
• Input Sensitivity e1.5uV/e
• Excitation: DC 5V
• Input Signal: -16mV ~18mV
• Load Cell Connection Mode: 6 Wire Connection (Long Wire Auto Compensation )
• Division: 1/2/5/10/20/50 Optional
• Power Supply: AC 85 ~ 245V, 50Hz ~ 60Hz; Build-in Battery DC 6V/4AH
• Working Temperature: 0~40°C; Working Humidity d90%RH
• Working Temperature: -10oC ~ 40oC; Humidity 10% ~ 85%, No Condensation
• Storing Temperature: -30oC ~ 60oC, Humility 10% ~ 70%, No Condensation
Applications
Ideal for warehouse floor scales, shipping and receiving docks, metal fabrication shops, and general industrial weighing up to 2,500 kg and 5,000 kg.
Variants
| SKU | Description | Action |
|---|---|---|
| SEN-FS15001 | 2500kg x 0.5kg / 5000lb x 1lb | Pan size: 1.2m x 1.2m | Contact us |
| SEN-FS15002 | 5000kg x 1kg / 10000lb x 2lb | Pan size: 1.2m x 1.2m | Contact us |
| SEN-FS15003 | 5000kg x 1kg / 10000lb x 2lb | Pan size: 1.5m x 1.5m | Contact us |
| SEN-FS15004 | 5000kg x 1kg / 10000lb x 2lb | Pan size: 1.2m x 2.44m | Contact us |
| SEN-FS15005 | Steel Ramp | Pan size: 4' x 3' | Contact us |
| SEN-FS15006 | Safety Bumper | Pan size: 4' | Contact us |
| SEN-FS15007 | Rechargeable Battery | Pan size: ---------- | Contact us |
